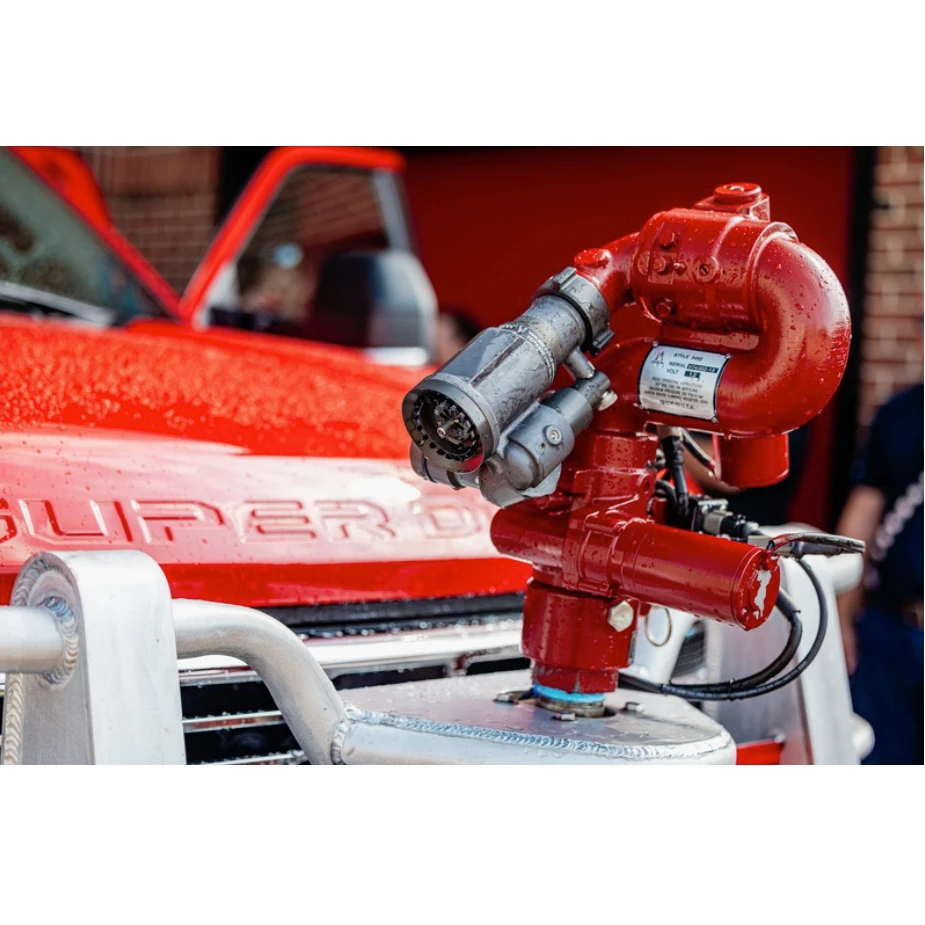

Akron Brass 3462 Forestry Bumper Monitor

Akron Brass 3462 Forestry Monitor

The Akron Brass 3462 Forestry Monitor provides an extremely rugged durable design ideal for brush and wildland firefighting.

Features
This compact forestry monitor features a fully sealed integrated electrical control system with waterproof locking connectors from all motors, power and control connections to withstand harsh environments often seen in Wildland fire fighting conditions. The high speed motors of this monitor provide proportional speed control for pinpoint stream positioning and accuracy. With a wide range of available nozzles, the 3462 fire monitor is ideal for use in water, foam and CAFS applications. Akron offers a complete line of Wildland fire fighting equipment.

Standard Features:
CAN proportional speed joystick control
Lightweight Pyrolite construction, 23 lbs without nozzle
Integrated and sealed electronics
Waterproof (IP 67 rated) locking connectors
Simple"plug and play" installation
320° maximum rotation range with stops at ± 90°
135° maximum elevation range with stops at ± 45° and -20°

Nozzle Options:
Style 3293 low flow adjustable electric fog nozzle with flush 30-60-95-125 gpm (115-230-360-475 lpm)
Style 3293 mid-flow adjustable electric fog nozzle 125-175-250-300 gpm (475-660-950-1140 lpm)
Style 3293 fixed orifice fog nozzles (must specify flow and pressure)
Quick Attack foam tube attachments for Style 3293 fog nozzles
Smooth bore tips

Additional Options:
2" quick disconnect
Wireless remote control (CAN interface)
2" electric valve
Flat disperse fog pattern available on all Style 3293 nozzles

Specifications:
Style 3462
Family Forestry / Wildland
Brand Akron Brass
Material Pyrolite
Product or Spare Part Finished Good
Inlet (English) 2" NPT
Inlet (Metric) 50 mm
Outlet (English) 1 1/2"
Outlet (Metric) 38 mm
Volts 12 V
Weight (Imperial) 23 lbs
Weight (Metric) kg 10.4 kg
Width (English) 11 9/16"
Width (Metric) 294 mm
Depth (English) 8 29/32"
Depth (Metric) 226 mm
Height (English) 13 3/16"
Height (Metric) 335 mm
Engine Power 0.00 HP
Flow GPM 300 GPM

Forestry Bumper Monitor Specifications
The 300gpm rated monitor is to be an all electric single waterway monitor constructed of lightweight Pyrolite. The monitor shall have cast-in turning vanes in each elbow. The monitor shall have fully enclosed motors and gears with manual overrides for both horizontal and vertical rotation and may be operated simultaneously. The monitor is not to exceed 13 3/16" high and 11 9/16" wide. The vertical travel shall be from 45° below to 90° above horizontal with adjustable stops at -20° and +45°. The horizontal rotation shall be 320° with adjustable stops at ±90°. The control system electronics shall be integrated with the monitor wiring harness. The control system shall use sealed, locking connectors for the monitor and nozzle motors. Two additional sealed, locking connectors shall be supplied for input power/electric valve control and J1939 CAN bus interface. A sealed USB connector shall be provided for updating control system firmware. All electrical connectors shall be minimum IP65 rated. The operator interface shall consist of a CAN bus compatible joystick which will provide up, down, right, left, fog, and stream control of the monitor. The joystick shall have a trigger switch to control an optional electric discharge valve. The monitor shall include a 5’ long power/valve harness and 20’ long CAN joystick harness.
